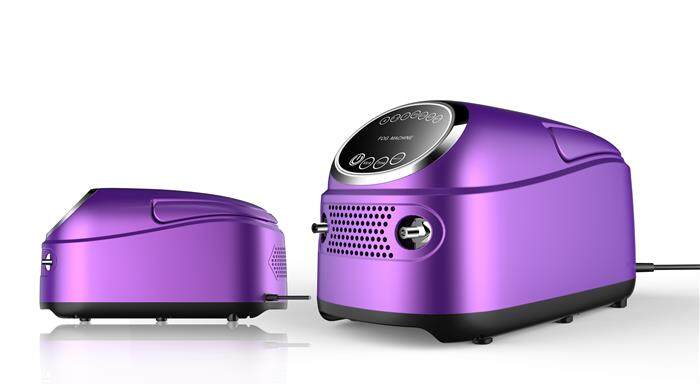

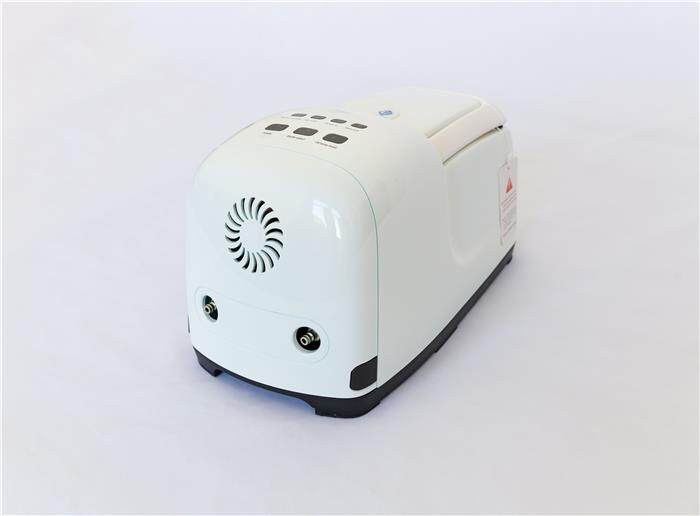

Introduction of Green Greenhouse Fog Machine
The world's first and only product using a three-cylinder pump (3L / min or less), compared to peers, only 50% noise, 50% power consumption, but can drive 150% nozzle number, average life Increase by 300%.
The fogging principle of Greenhouse Fog Machine is based on natural phenomena such as water vapor, clouds and fog. It allows you to generate such an environment anytime, anywhere. Water mist can absorb a large amount of heat in the air. According to scientific statistics, each kilogram of water is used to stimulate the floating fog, which is equivalent to dissolving seven kilograms of ice. Since the water changes from a liquid state to a gaseous state, the space temperature is increased and the air temperature is lowered. Since the advent of the fog machine technology, it has been widely used in various industries with its economical, efficient and convenient features.
Products Specification
|
Code |
FG-100 |
FG-150 |
FG-200 |
|
|
Pump |
Flow |
1.0L/min |
1.5L/min |
2.0L/min |
|
Pump |
3 pistons |
3 pistons |
3 pistons |
|
|
Pressure |
70Bar/1000Psi |
70Bar/1000Psi |
70Bar/1000psi |
|
|
Motor |
Motor |
110V~240V AC |
110V~240V AC |
110V~240V AC |
|
Motor Power |
180W |
180W |
250W |
|
|
Motor Rpm |
1400/50Hz 1680/60Hz |
1400/50Hz 1680/60Hz | 1400/50Hz 1680/60Hz | |
|
Performance |
Noise with pressure |
56db |
56db |
58db |
|
Maintains time |
800-1000h |
800-1000h | 800-1000h | |
|
Remote control |
Yes |
Yes |
Yes |
|
|
Nozzle carry qty (0.15mm) |
8~25 pcs |
16~40 pcs |
24~60 pcs |
|
|
Cooling size |
10M2 – 65M2 |
20M2 – 100M2 |
30M2 – 150M2 |
|
|
Code |
FG-025 |
FG-050 |
FG-050S |
|
|
Pump |
Flow |
0.25L/min |
0.5L/min |
0.25~0.5L/min |
|
Pump |
3 pistons |
3 pistons |
3 pistons |
|
|
Pressure |
50Bar/786Psi |
60Bar/857Psi |
70Bar/1000psi |
|
|
Motor |
Motor |
12V DC with brush |
12V DC with brush |
12V DC without brush |
|
Motor Power |
90W |
120W |
120W |
|
|
Motor Rpm |
600 |
1200 |
600~1200 (automatic) |
|
|
Performance |
Noise with pressure |
48db |
50db |
48db |
|
Maintains time |
2000h |
1000h |
1000~2000h |
|
|
Remote control |
Yes |
Yes |
Yes |
|
|
Nozzle carry qty (0.15mm) |
2~8 pcs |
5~15 pcs |
2~15 pcs |
|
|
Cooling size |
3M2 – 20M2 |
5M2 – 40M2 |
3M2 – 40M2 |
|
Applications of Green Greenhouse Fog Machine
Greenhouse agriculture
Greenhouse fogging machines generally increase air humidity and reduce greenhouse temperature by spraying, thereby providing a suitable growth environment for plants and promoting plant growth.
Food processing & storage industry
In the food processing industry, especially in the storage and transportation of fresh fruits and vegetables, greenhouse fogging machines can be used to maintain the freshness of food and avoid the deterioration of food quality due to drying.
Laboratories & scientific research
In some scientific research environments, greenhouse fogging machines are used to simulate specific humidity environments for experimental research on plant growth, climate change, etc.
8 highlights of FOG Fog Machine
Our fogging machines have gone through many changes and now have 3 generations of fogging machines.
Efficient water pump system
The fogger is equipped with a three-piston water pump, which makes the water flow smoother, reduces pulsation, improves the quality of the atomization process and the durability of the equipment.
High-pressure spray
Our fogger can operate at a pressure of up to 70Bar (1000Psi), providing strong atomization capabilities.
Precise control and efficient motor
The motor speed is 1400RPM (50Hz) to 1680RPM (60Hz), and it can operate efficiently at different frequencies to adapt to different power environments around the world.
Low noise design
The noise of our fogger is controlled at 56db when working, which is lower than the noise of the first generation machine, and even in noise-sensitive environments such as greenhouses, museums, shopping malls and other places, it will not cause any interference or discomfort.
Intelligent remote control function
We are equipped with a remote control operation function, and users can remotely adjust the atomization amount, power on and off, timing and other settings, providing a more convenient use experience.
Long-term continuous work
The fogging machine can work continuously for 800 to 1000 hours, which is suitable for long-term industrial or commercial use, reducing maintenance frequency and use costs.
Adapt to various atomization needs
A fogging machine can be equipped with 8 to 25 nozzles, each with a diameter of 0.15mm, which enables the fogging machine to adjust the atomization amount in different occasions to meet the needs of different humidity and coverage.
Large applicable area
The equipment is suitable for environments of 10 square meters to 65 square meters, and is widely used in greenhouses, agriculture, greenhouses, laboratories, offices and other places. It can effectively control air humidity and improve air quality and working environment.
Benefits Of Becoming Our Distributors
Flexible product customization
We can provide dealers with a certain degree of product customization (such as spray volume, number of nozzles, working mode, etc.) to meet the needs of customers in their area.
Favorable wholesale prices
We can provide dealers with competitive wholesale prices, enabling them to purchase at reasonable prices and gain profit margins in the market.
Fast supply support
Once there is a product replacement, we ensure that our dealers can quickly obtain new product supplies and can provide timely transportation and delivery services to avoid product shortages or delivery delays.
Quality assurance and certification
Each product complies with ISO9001 industry standards and CE quality certification, and we have more than 50 patent certificates, which can provide relevant certification documents to dealers to help them gain market trust.
Quality Control In The Whole Process
1. Raw material inspection
First, the purchasing department confirms the material list and specifications provided by the supplier based on the product design drawings and technical requirements. Then, the inspector will conduct multiple inspections on the raw materials, including appearance, size, chemical composition, etc., to ensure that they meet the requirements. The inspector will issue a detailed inspection report, record each inspection result and indicate whether it is qualified. All qualified raw materials will be attached with a certificate of conformity and marked for storage, and enter the production line ready for use.
2. Intermediate inspection
For the processing and manufacturing of each component, we will conduct multiple inspections such as size, weight, and appearance. For example, the aperture size of the nozzle, the working pressure of the pump, and the contact stability of electronic components will be tested by precise measuring tools and equipment. During assembly, each work station will have a standard operating procedure (SOP) to guide to ensure that the operator operates in accordance with the regulations.
3. Final inspection and testing
After the product is assembled, we will test the performance and safety of the equipment to ensure that all functions can operate stably, and finally package it.
FAQ
Q: Do you quote at the price of FOB?
A: We usually give the price at EXW(factory price) for samples. But the quantity order is by FOB.
Q: Do you have stock productions to sell?
A: Yes,of course.but we also offer OEM service if you have quantity.
Q: What information do you want to know if i want to get a quotation?
A: A)The model/size of your products
B)The application of your products
C)Special package methods if you needs
D)Quantity
Q: Do you accept ODM?
A: We welcome ODM, we have professional engineers team to help you with the design of the misting system and to provide you the professional suggestion with the misting system you want.
Q: How to get sample ?
A: Yes, we can provide free samples and ship it by using your express account.
Q: How to make order without the model no.?
A: At first, SEND A MESSAGE to us with your demand:After we receive your messages, we will help you to choose the right specifications and other inquiries.
Q: Why do you choose us as your long term supplier
A: Competitive price,excellent and stable quality ,professional service team,fast delivery,good payment,big support for you to win more orders.
Q: What if the parts are not good?
A: We can guarantee good quality, but if happened, please contact us immediately, take some pictures, we will check on the problem, and solve it asap.
