Description

Technical Parameters

We are national High-Tech enterprice in China, and produce misting(fogging) machine, nozzles, pipe, fitting and so on.

Our systems can be controlled by mobile APP, remote key and sensor.

The best sale models:
FG-025: 8pcs 0.10mm nozzles set
FG-050: 14pcs 0.10mm nozzles set
FG-050S:14pcs 0.10mm nozzles set with smart system;
FG-100: 20pcs 0.15mm nozzles set
FG-150: 30pcs 0.15mm nozzles set
FG-200: 50pcs 0.15mm nozzles set
FG-300: 50pcs 0.20mm nozzles set

Each nozzle can cover from 1.5 to 2.5 square meters.

Model	Pump			Faimily power supply voltage	Motor			Performance
Model	Water flow	Pump	Pressure	Faimily power supply voltage	Motor voltage	Power	Rpm	Noise with pressure	Maintains time	Remote control	Cooling size
FG-025	0.25L/min	3 pistons	70Bar/ 1000psi	110~240 AC	12V DC with brush	90W	600	48db	2000h	Remote key	3M2 – 20M2
FG-050	0.5L/min	3 pistons	70Bar/ 1000psi	110~240 AC	12V DC with brush	150W	1100	50db	1000h	Remote key	5M2 – 35M2
FG-050S	0.2~0.7L/min (automatic)	3 pistons	70Bar/ 1000psi	110~240 AC	12V DC without brush	150W	500~1500 (automatic)	48db	1000~2000h	Remote key	3M2 – 45M2

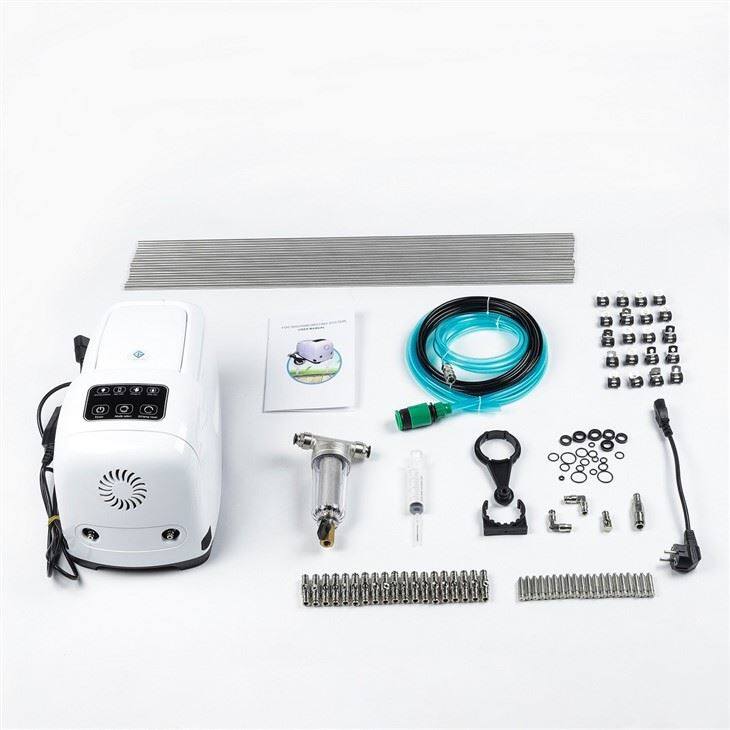

FG-100	50Hz: 1.0L/Min 60Hz: 1.2L/min	3 pistons	70Bar/ 1000psi	110~240 AC	110/220V AC	180W	1400/50Hz 1680/60Hz	56db	800-1200h	By Phone App / Remote key	10M2 – 65M2

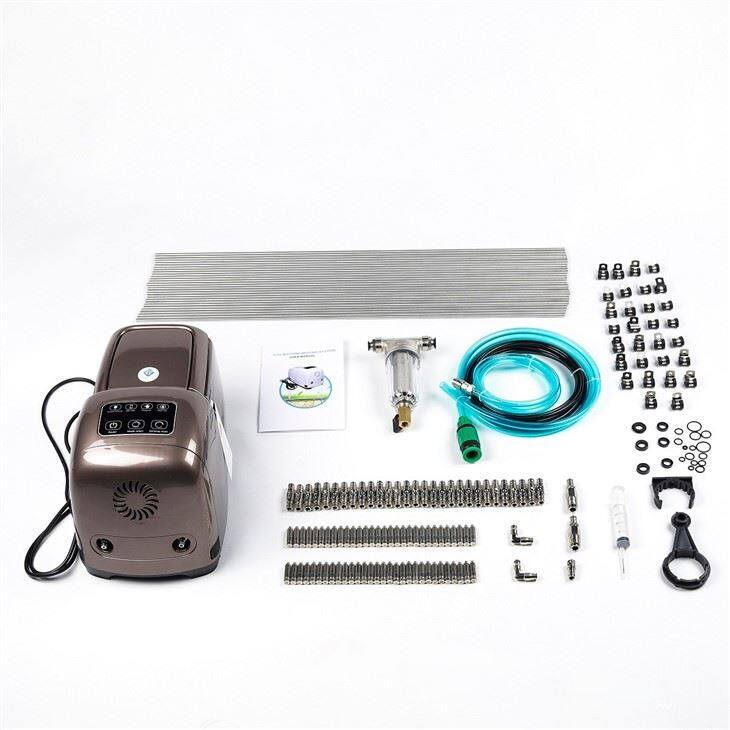

FG-150	50Hz: 1.5L/Min 60Hz: 1.8L/min	3 pistons	70Bar/ 1000psi	110~240 AC	110/220V AC	180W	1400/50Hz 1680/60Hz	56db	800-1200h	By Phone App / Remote key	20M2-100M2

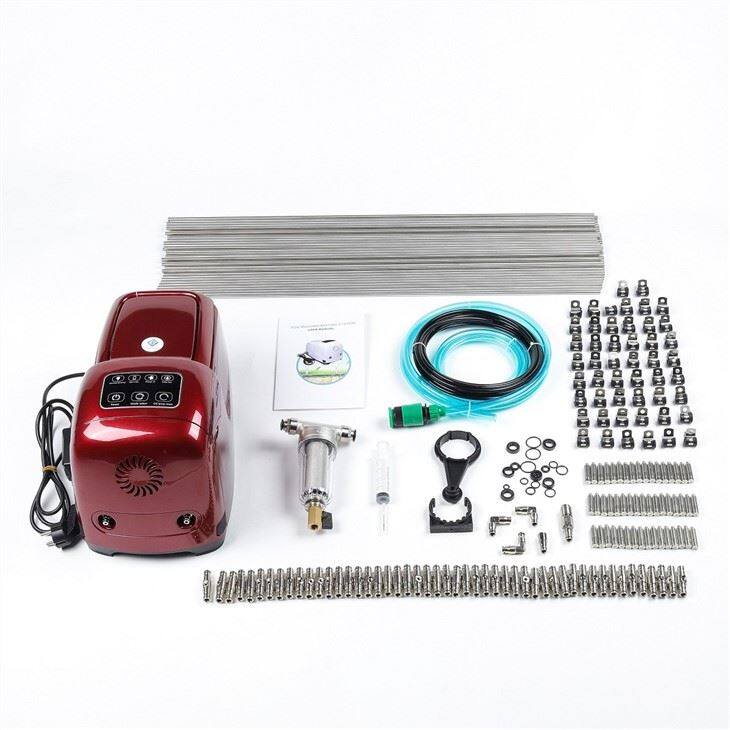

FG-200	50Hz: 2.0L/Min 60Hz: 2.4L/min	3 pistons	70Bar/ 1000psi	220~240 AC	220V AC	250W	1400/50Hz 1680/60Hz	58db	800-1200h	By Phone App / Remote key	30M2-150M2

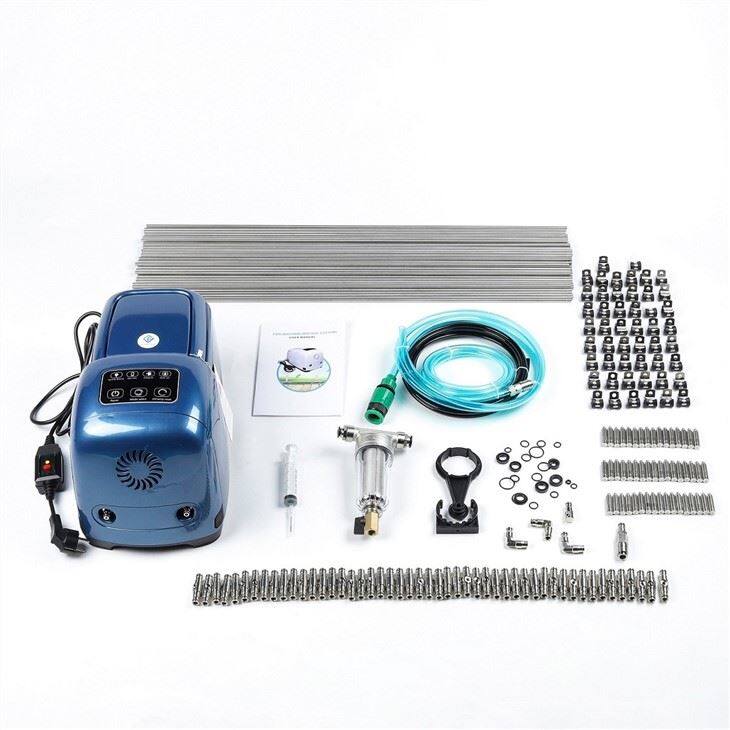

FG-300	3.0L/min	3 pistons	70Bar/ 1000psi	110~240 AC	311V DC without brush	750W	1700	60db	800-1200h	By Phone App / Remote key	50M2-200M2

Model	Faimily Voltage	Motor Voltage	Flow rate L/min	Nozzle piece	Nozzle piece	Nozzle piece
Model	Faimily Voltage	Motor Voltage	Flow rate L/min	Nozzle orifice:0.1mm	Nozzle orifice:0.15mm	Nozzle orifice:0.20mm
FG-025	110/220V 50-60HZ	12V DC	0.25	2~8	2~6	2~4
FG-050	110/220V 50-60HZ	12V DC	0.5	5~14	5~12	3~7
FG-050S	110/220V 50-60HZ	12V DC	0.2~0.7 Automatic	2~18	2~16	2~10
FG-100	220V/50HZ	220V AC	1	12~30	8~25	6~15
FG-150	220V/50HZ	220V AC	1.5	18~45	12~35	8~22
FG-200	220V/50HZ	220V AC	2	24~60	20~50	12~30
FG-100	110/220V 60HZ	110/220V AC	1.2	12~35	8~28	7~18
FG-150	110/220V 60HZ	110/220V AC	1.8	20~50	12~40	10~27
FG-200	220V 60HZ	220V AC	2.4	28~65	22~60	15~36
FG-300	110/220V 60HZ	311V DC	3	60~90	50~75	35~50

Hot Tags: fg-300 3l/min high pressure fogging system 1000psi with app control, China, suppliers, manufacturers, factory, wholesale, buy

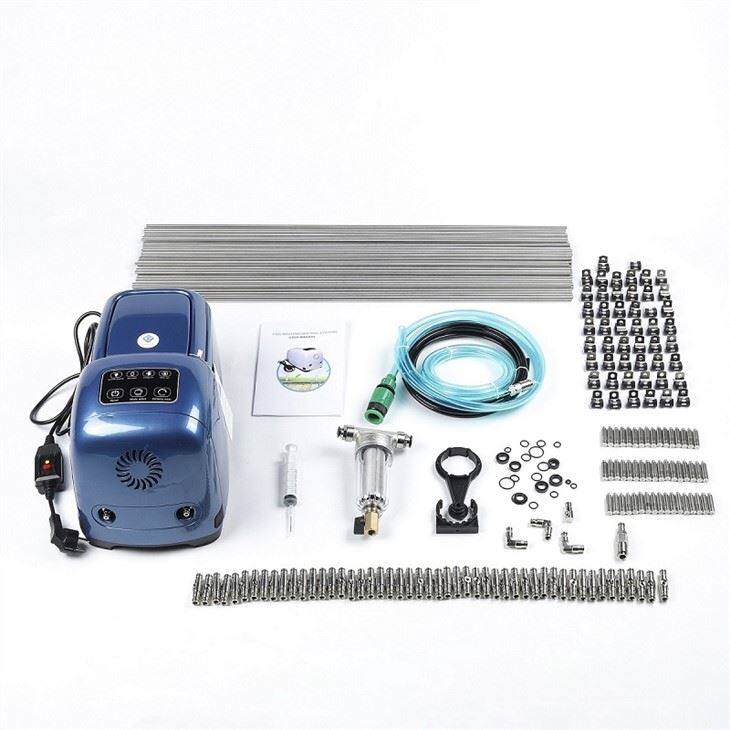

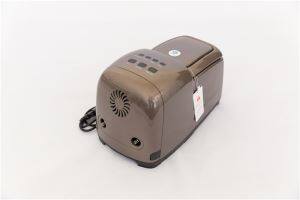

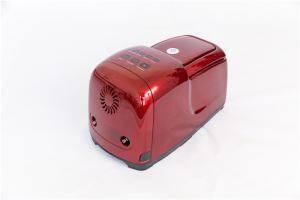

FG-300 3L/min High Pressure Fogging System 1000PSI With APP Control
