Description

Technical Parameters

How the fog cloud system works：When mist produced by a misting system evaporates, it instantly cools the air and reduces the temperature by up to 10°. This happens because the evaporation process needs heat. Once the mist absorbs the heat, the temperature will drop.

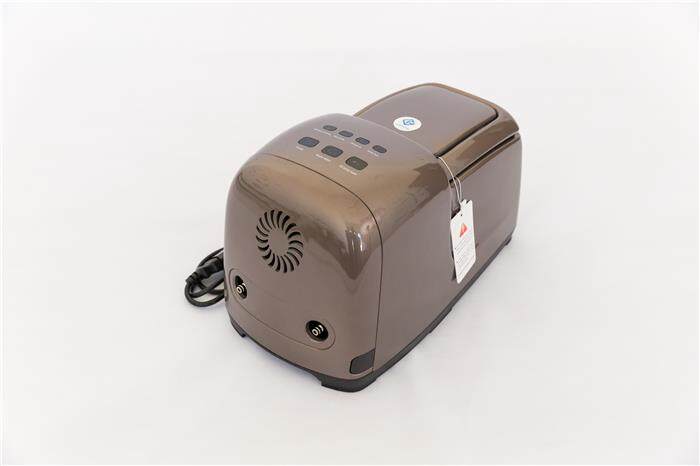

Product details

Code		FG-025	FG-050	FG-050S
Pump	Flow	0.25L/min	0.5L/min	0.25~0.5L/min
	Pump	3 pistons	3 pistons	3 pistons
	Pressure	50Bar/786Psi	60Bar/857Psi	70Bar/1000psi
Motor	Motor	12V DC with brush	12V DC with brush	12V DC without brush
	Motor Power	90W	120W	120W
	Motor Rpm	600	1200	600~1200 (automatic)
Performance	Noise with pressure	48db	50db	48db
	Maintains time	2000h	1000h	1000~2000h
	Remote control	Yes	Yes	Yes

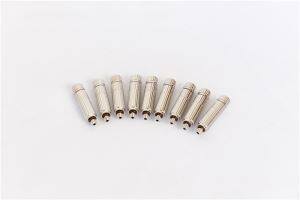

	Nozzle carry qty (0.15mm)	2~8 pcs	5~15 pcs	2~15 pcs
	Cooling size	3M2 – 20M2	5M2 – 40M2	3M2 – 40M2

Product Feature And Application

This machine can be widely used for outdoor garden or restaurant cooling, vegetable freshing, greenhouse irrigation, stockbreeding cooling, summer fly remove and so on, it can reduce the outside weather temperature from 5℃ to 10℃, and also will highly increase the humidity, it's a new type of outdoor air conditioner.

QQ截图20181207142942

Product advantages

1、advanced technology: the world's first and only product using a three-cylinder pump (3L / min or less), compared to peers, only 50% noise, 50% power consumption, but can drive 150% nozzle number, average life Increase by 300%;

2、 safety and security in place: there is a double leakage protection system, there is a high pressure pump automatic constant pressure system (explosion proof), there is a lack of automatic shutdown protection, motor overheat protection, etc.

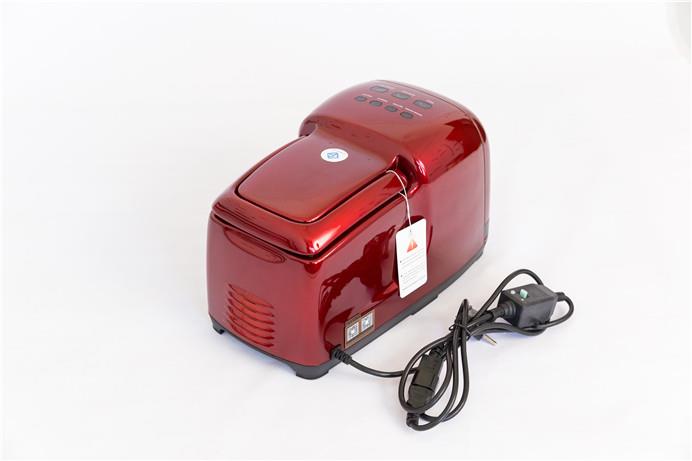

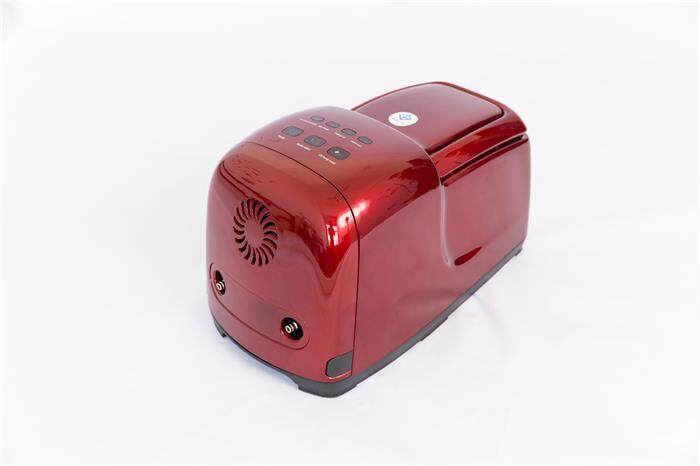

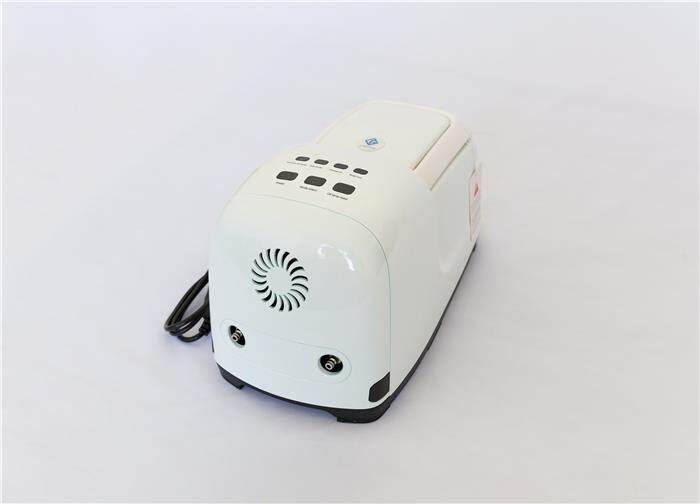

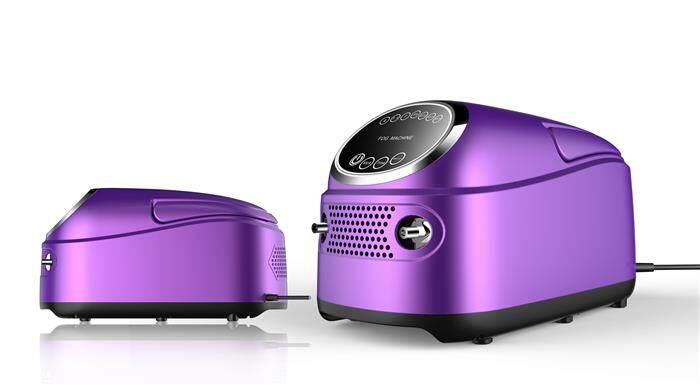

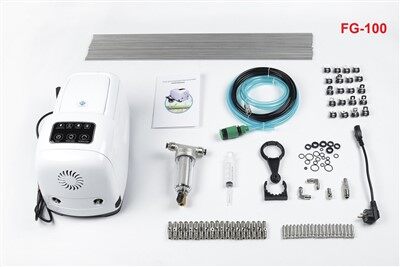

Production Details
