Taizhou Fog machine offers a large selection of low-pressure misting systems that are designed to operate using only standard hose pressure. Since the droplets are not atomized, they are larger and take longer to evaporate. These low-pressure misting systems can be installed on any awning, patio or deck. Even though these low-pressure misting systems have bigger droplets, they can still drop the temperature by much as 20 degrees.
Taizhou Fog machine sells high-quality low-pressure misting systems that are easy to install and easy to use. They produce outdoor cooling with a low amount of wetness. These low pressure systems have moist droplets, but will not get you “soaked”. A major advantage of low-pressure misting systems is they do not require a high pressure or a mid-pressure pump. You can set up your own misting system by providing only a standard water hose. No electricity is needed to operate these misting systems. For those reasons, the low-pressure misting systems are an extremely quiet unit.
Check out Taizhou Fog machine complete line of low- pressure misting systems at +86-13148366999. One of our sale experts will help you decide which low-pressure misting system is best for you.

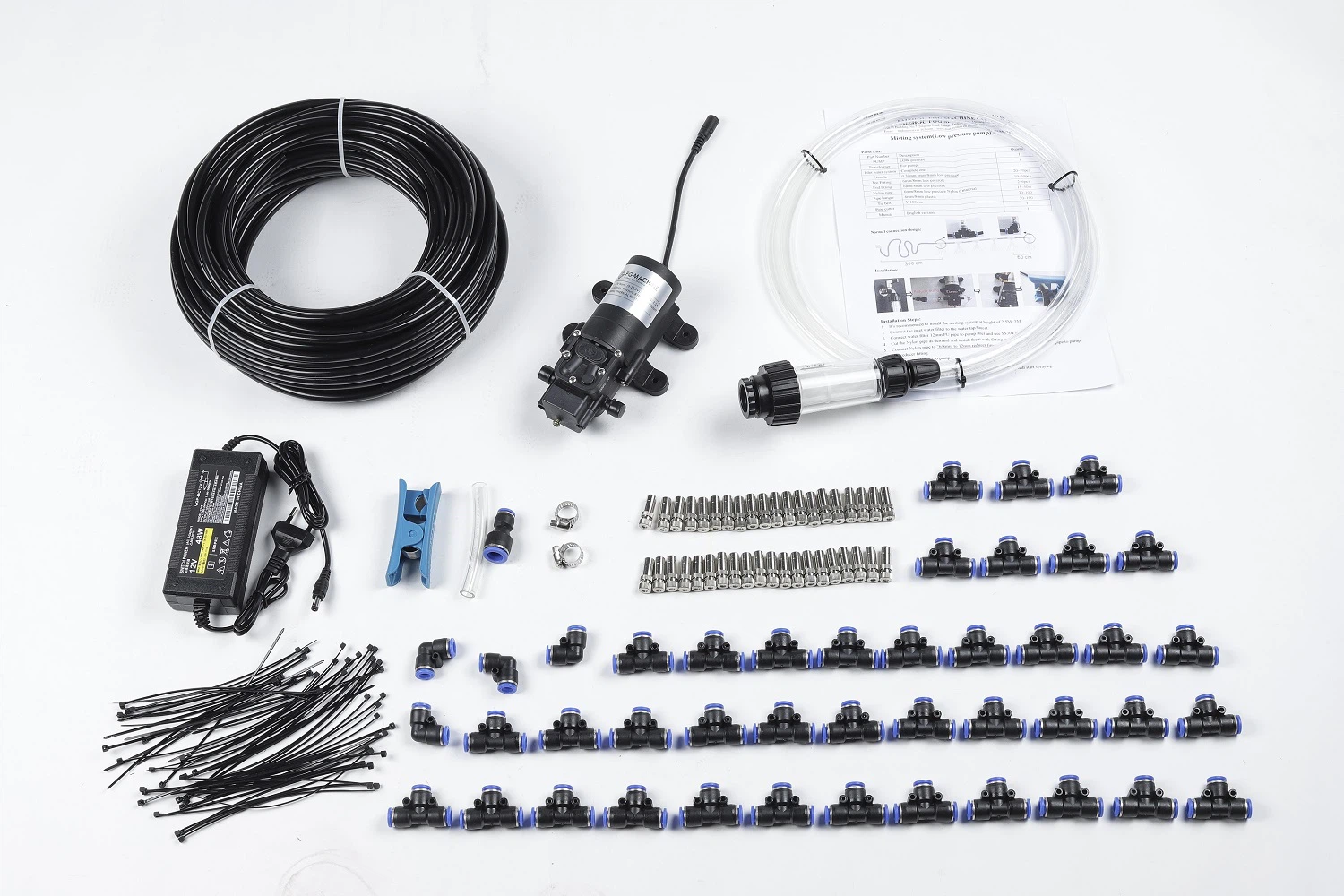

| S/N | GOODS | DESCRIPTION | FULL SET DETAIL PARTS QTY | ||||||
| LEVEL: | By faucet (without pump) |
With LP Pump | |||||||
| MODEL: | LP-6PCS | LP-15PCS | LP-PUMP20 | LP-PUMP30 | LP-PUMP40 | LP-PUMP50 | LP-PUMP70 | ||
| FOB NINGBO PRICE : (LESS THAN 200 SETS ARE EXW) |
$7.00 | $12.00 | $27.00 | $32.00 | $37.00 | $42.00 | $50.00 | ||

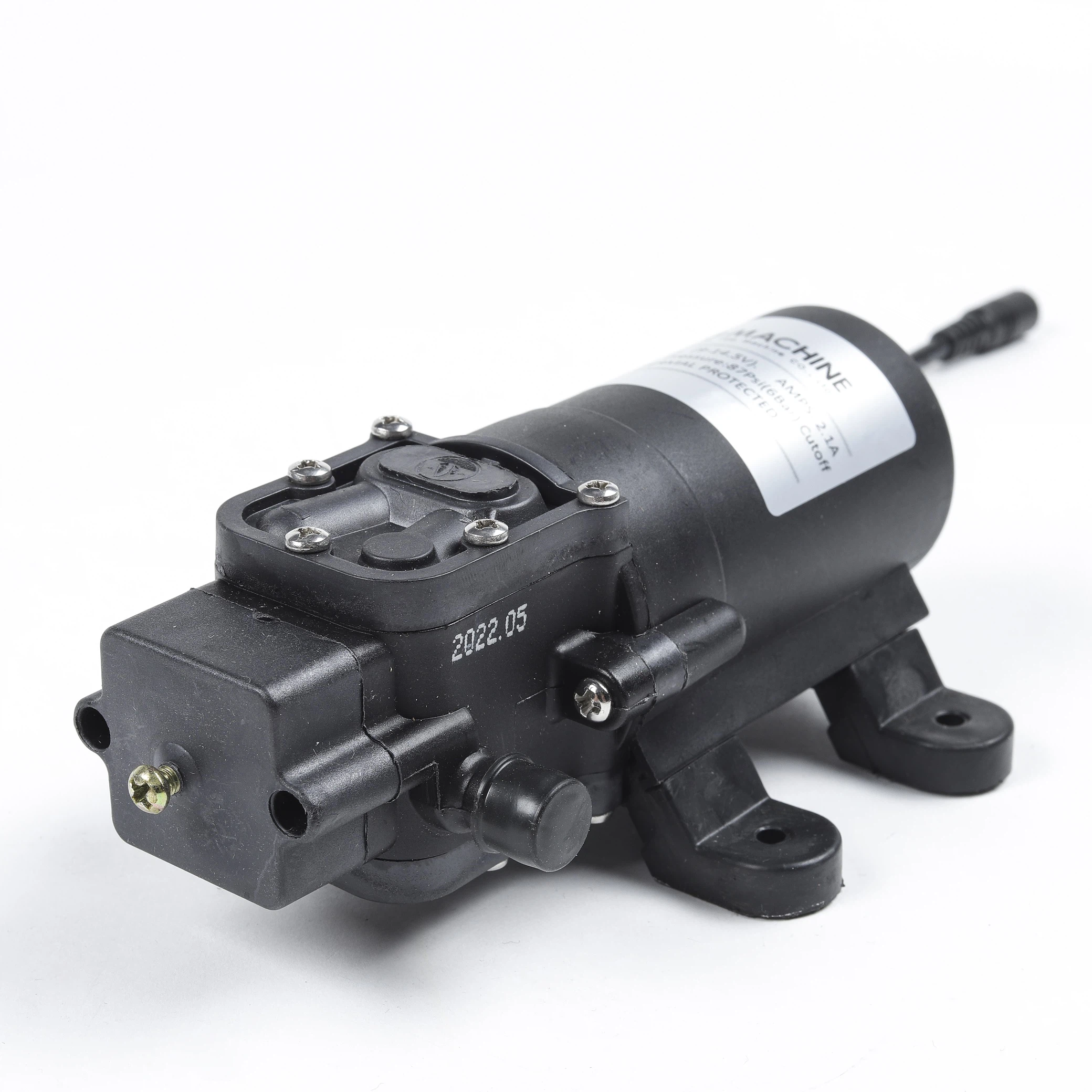

| 1 | Main machine | * 12V DC; * 87PSI /6BAR; * Plastic pump; * 2000hours life Motor |
x | x | 1 (2.6L/min) |
1 (2.6L/min) |
1 (2.6L/min) |
1 (3.5L/min) |
1 (6L/min) |
| 2 | Inlet water system | * Change 220V to 12V | x | x | 1 | 1 | 1 | 1 | 1 |
| 3 | Inlet water system | * Faucet(tap) and 6mm pipe connector; | 1 | 1 | x | x | x | x | x |
| 4 | Inlet water system | * 2m inlet plastic pipe; * Water filter connectors; * Faucet(tap) connector; * Water filter; |
x | x | 1 | 1 | 1 | 1 | 1 |

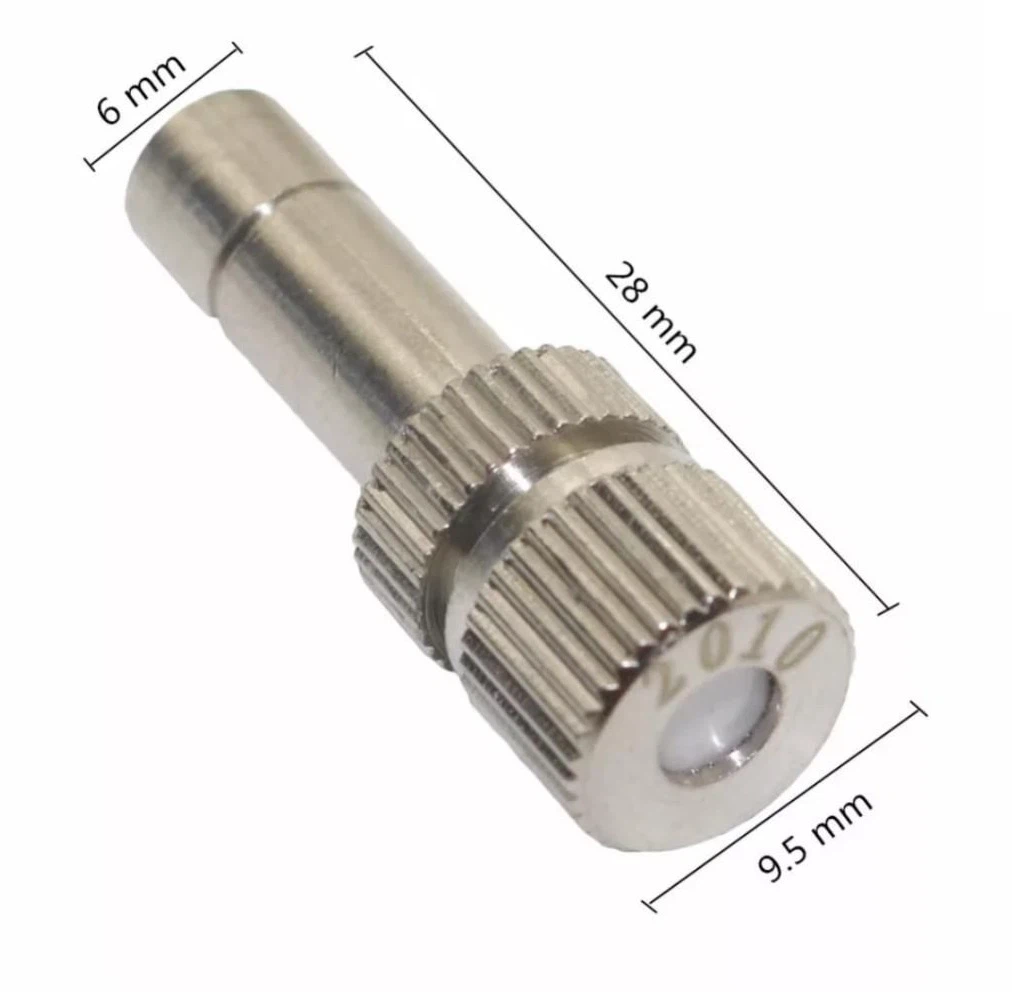

| 5 | Low pressure nozzles | * Brass with nickle plated; * 0.40mm: for faucet; * 0.30mm for pump; * With ceramic orifice; |
6 (6mm) |
15 (6mm) |
20 (6mm) |
30 (8mm) |
40 (8mm) |
50 (8mm) |
70 (8mm) |
| 6 | Straight fitting | * 6mm/8mm size * Cheap material * Tee fitting |
5 (6mm) |
14 (6mm) |
19 (6mm) |
29 (8mm) |
39 (8mm) |
49 (8mm) |
69 (8mm) |
| 7 | End fitting | * 6mm/8mm size * Cheap material * For corner or end of pipe |
1 (6mm) |
1 (6mm) |
2 (6mm) |
3 (8mm) |
4 (8mm) |
5 (8mm) |
6 (8mm) |
| 8 | Nylon(PA) 6 pipe | * Max pressure: 20Bar; * Material: PA Nylon 6; * Double cost & life than PE; * Size: 6mm/8mm |
6m (6mm) |
12m (6mm) |
15m (6mm) |
20m (8mm) |
30m (8mm) |
35m (8mm) |
50m (8mm) |
| 9 | Pipe Hanger | 1. Used for 6mm/8mm pipe; 2. Plastic |
12 (6mm) |
24 (6mm) |
30 (6mm) |
40 (8mm) |
60 (8mm) |
70 (8mm) |
100 (8mm) |
| 10 | Pipe cutter | * For cutting the pipe | x | x | 1 | 1 | 1 | 1 | 1 |
| 11 | User manual | * English langauge | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| 12 | Carton package | * Strong color package without Logo; | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
