Benefits of a Fog Misting System：Outdoor cooling, Landscaping , place beauty making, Increase humidity for big area，Mosquit & flies removing, Sterilizing, dedusting & remove haze & fresh the air, Irrigation for greenhouse .

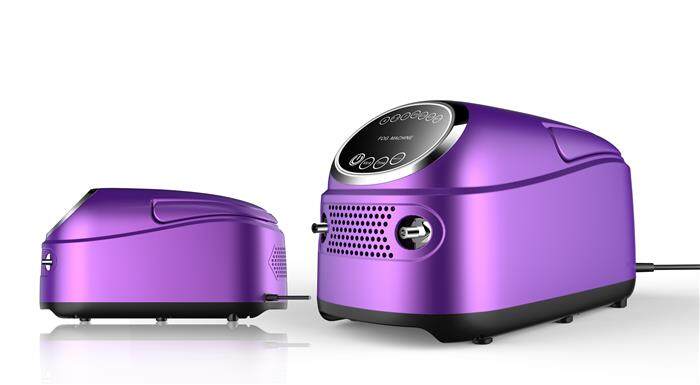

Code | FG-025 | FG-050 | FG-050S | FG-100 | FG-150 | FG-200 | |
Pump | Flow | 0.25L/min | 0.5L/min | 0.25~0.5L/min | 1.0L/min | 1.5L/min | 2.0L/min |
Pump | 3 pistons | 3 pistons | 3 pistons | 3 pistons | 3 pistons | 3 pistons | |
Pressure | 50Bar/786Psi | 60Bar/857Psi | 70Bar/1000psi | 70Bar/1000psi | 70Bar/1000psi | 70Bar/1000psi | |
Motor | Motor | 12V DC with brush | 12V DC with brush | 12V DC without brush | 110V~240V AC | 110V~240V AC | 110V~240V AC |
Motor Power | 90W | 120W | 120W | 180W | 180W | 250W | |
Motor Rpm | 600 | 1200 | 600~1200 (automatic) | 1400/50Hz 1680/60Hz | 1400/50Hz 1680/60Hz | 1400/50Hz 1680/60Hz | |
Performance | Noise with pressure | 48db | 50db | 48db | 56db | 56db | 58db |
Maintains time | 2000h | 1000h | 1000~2000h | 800-1000h | 800-1000h | 800-1000h | |
Remote control | Yes | Yes | Yes | Yes | Yes | Yes | |

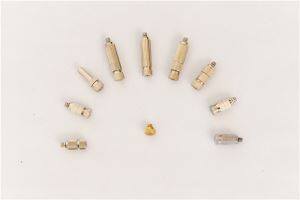

Nozzle carry qty (0.15mm) | 2~8 pcs | 5~15 pcs | 2~15 pcs | 8~25pcs | 16~40pcs | 24~60pcs | |
Cooling size | 3M2 – 20M2 | 5M2 – 40M2 | 3M2 – 40M2 | 10M2 – 65M2 | 20M2-100M2 | 30M2-150M2 | |
Product details
Where will I use the Fog misting system?
1, large entertainment venues, farmhouses
2. Government projects (station, airport, etc.)
3, supermarket chain
4. Places requiring large area disinfection (exhibitions, schools, hospitals, etc.)
5. Construction company, decoration company (for landscaping, dust removal, etc.)
6. High-end flower growers
Product advantages
1, advanced technology: the world's first and only product using a three-cylinder pump (3L / min or less), compared to peers, only 50% noise, 50% power consumption, but can drive 150% nozzle number, average life Increase by 300%;
2, high-end accessories, the type is very complete; can be installed by hand, once installed, never leak, no worries;
3, the control system is the world's first: mobile APP + touch control + intelligent timer, which APP has Chinese, English, Spanish, Portuguese, French, German, Russian, Korean, Arabic, a total of 9 countries language
4, safety and security in place: there is a double leakage protection system, there is a high pressure pump automatic constant pressure system (explosion proof), there is a lack of automatic shutdown protection, motor overheat protection, etc.
