High Pressure Fogging System For Outdoor Cooling

This is one of the most advanced misting machine in the world, the pump is 3 pistons,it's 70Bar with anti-corrosion performance,self priming, super quiet and never leakage. The pressure can be adjusted by panel, mobile APP or remote key.

The system can wireless match with sensor, wifi and IOT system, and even can work with battery.

The mist size is 3 to 7um, never drip or make people in wet. Machine electrical system is IP67 waterproof, if there is electricity leakage or water shortage, it will automatically shut down, machine also have easy operation timer to control the spray time

The Best sale models:

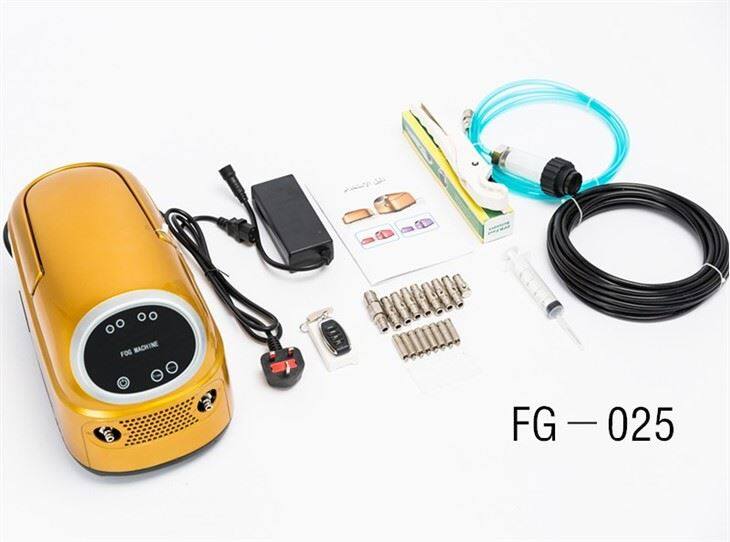

FG-025: 8pcs nozzles set                                       FG-050: 14pcs nozzles set

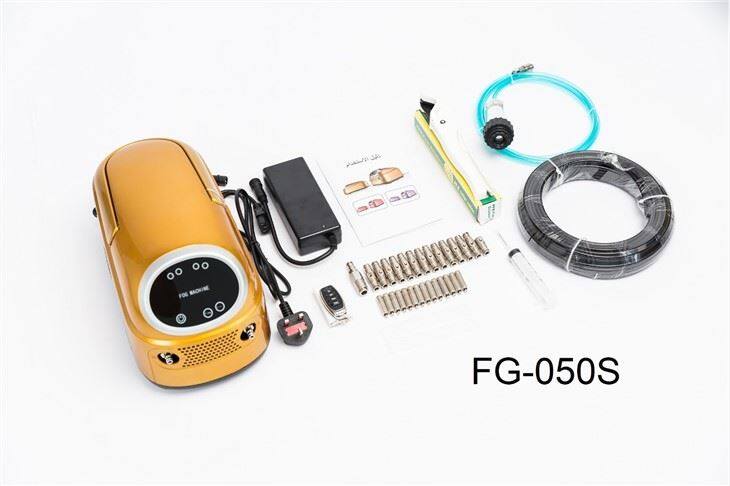

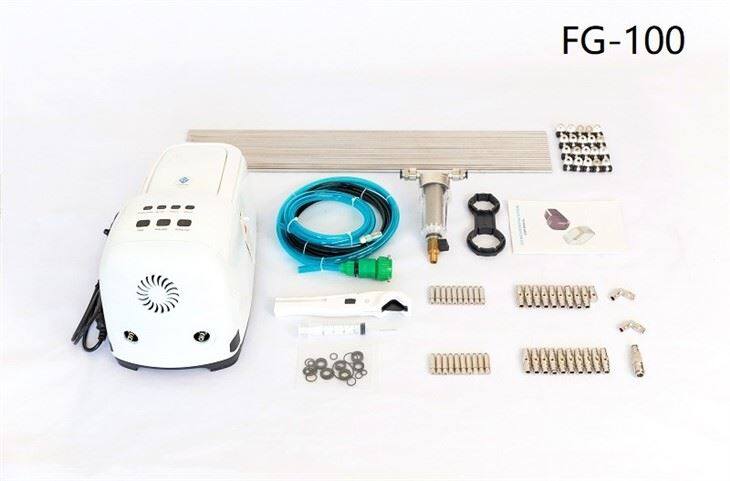

FG-050S: 14pcs nozzles set with smart system     FG-100: 20pcs nozzles set

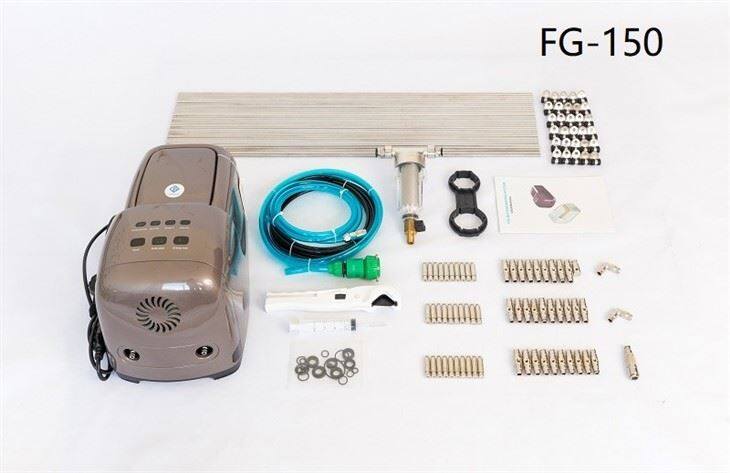

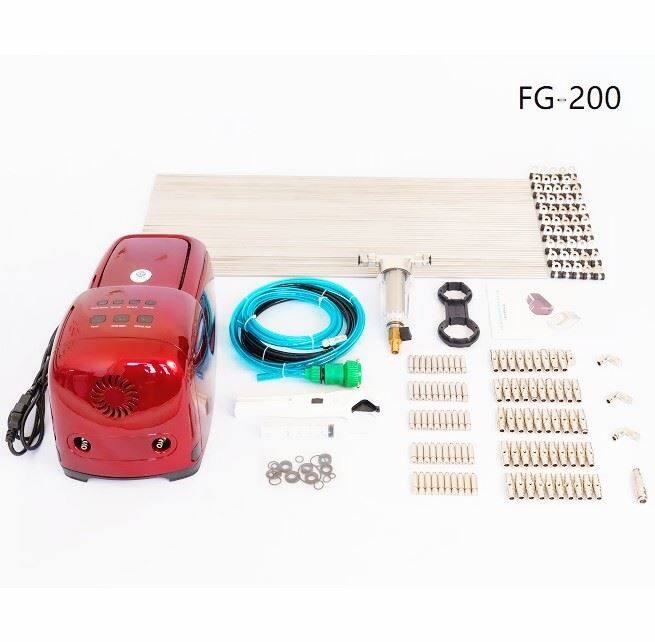

FG-150: 30pcs nozzles set                                     FG-200: 50pcs nozzles set

Each nozzle can cover from 1.5 to 2.5 square meters.

Where Does The Misting System Used?

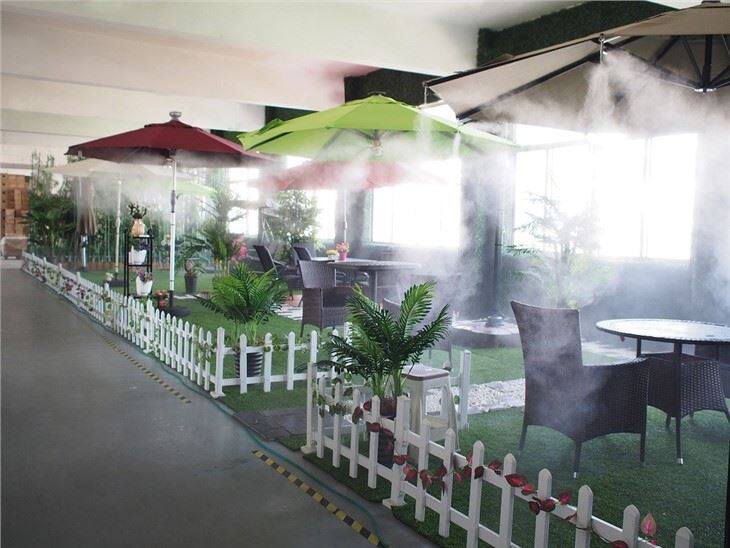

OUTDOOR COOLING & MOSOUITOES REMOVE: REDUCE 3°CTO 8°C

FOR DISINFECTION CHANNEL & TUNNEL BUILDING: 100% KILL THE VIRUS

LANDSCAPE FOR PARK, RESTAURANT AND VILLAS

FRESH-KEEPING FOR VEGETABLE, FISH AND FRUIT

ANIMAL COOLING, STERILIZATION & DEODORIZATION, INCREASE SURVIVAL RATE

GREENHOUSE AND MUSHROOMIRRIGATION

Very safe:  Electrical leakage + water lack + overwork + overheat

Very humanized:  Anti drip + constant pressure + maintain warning + warranty time reminder

FG Fogging System：Give you the safest experience

electrical leakage protection

This feature is designed to detect any leakage of electrical current that may occur due to insulation failure or other faults in the electrical circuit.

Motor overheat protection

This safety feature prevents the motor from overheating, which can damage the motor or cause a fire.

water lack protection

It ensures that the appliance does not operate when there is insufficient water, preventing potential damage to components such as the pump or heater.

anti-drip protection

This protection feature prevents water from dripping or spilling in situations where leakage could cause damage to surrounding areas or pose a safety hazard.

 5 to 10 years ahead of competitors. The FG-050S even  can:

               a). change pressure by touching glass panel or pressing remote key

               b). water flow automatic changed according to nozzle qty & pressure setting

Model	1st. generation	3rd. generation
products
water Flow (inlet)	2 l/min	2 l/min
body	steel or ss304	ABS with shining metal panting
piston qty	2 pistons	3 pistons
pressure	70 Bar	70 Bar
motor required	550 W	250 W
Max.Nozzles qty	40 pcs.(0.15mm)	60 pcs(0.15mm)
Working noise	74db	58db
Maintains time	200 ~300 h/time	800 ~1000 h/time
pipe shaking	a lot	none
pump life	2 ~ 4 years	8 years
timer	very simple	high level
remote control	No	Yes
accessories	low level	top level

•    FG-025, FG-050, FG-050S: buyers usually from private family, so we use remote key and simple timer, even Child can operate it;
•    FG-100, FG-150, FG-200: usually for commercial use, such as restaurant. We use Mobile App so every worker can set the machine and machine work with automatically. APP have 10 different languages inside.

We have more than 50 different patent certificates inside and outside of China.
