FG Machine: Microporous High-pressure Impact Atomization Technology
The fogging principle of the fog machine is based on natural phenomena. The water changes from liquid to gas, which increases the space temperature and achieves the purpose of reducing the air temperature. Since the introduction of the fog machine technology, its economic, efficient and convenient features. It has been widely used in various industries quickly.
FG High Pressure Mist Machine utilizes microporous high-pressure impact atomization technology to split water molecules into hundreds of millions of 1~10 micron fog molecules, 80% of which are less than 4 micron, reaching their aerosol state and floating state. It is completely equivalent to natural fog. During the walk, it feels fresh, moist, and delicate air, thus achieving the effects of warming, dusting, and beautifying the environment, making people feel as fresh as life in nature.
In order to achieve the most beautiful fog effect landscape, we provide professional fog effect design services, from the plane layout effect creativity, and the integration of the surrounding scenes, to achieve exquisite creativity and performance, providing a complete set of atomization effect solutions.
FG High Pressure Mist Machine Series Parameters
|
Code |
FG-100 |
FG-150 |
FG-200 |
|
|
Pump |
Flow |
1.0L/min |
1.5L/min |
2.0L/min |
|
Pump |
3 pistons |
3 pistons |
3 pistons |
|
|
Pressure |
70Bar/1000Psi |
70Bar/1000Psi |
70Bar/1000psi |
|
|
Motor |
Motor |
110V~240V AC |
110V~240V AC |
110V~240V AC |
|
Motor Power |
180W |
180W |
250W |
|
|
Motor Rpm |
1400/50Hz 1680/60Hz |
1400/50Hz 1680/60Hz | 1400/50Hz 1680/60Hz | |
|
Performance |
Noise with pressure |
56db |
56db |
58db |
|
Maintains time |
800-1000h |
800-1000h | 800-1000h | |
|
Remote control |
Yes |
Yes |
Yes |
|
|
Nozzle carry qty (0.15mm) |
8~25 pcs |
16~40 pcs |
24~60 pcs |
|
|
Cooling size |
10M2 – 65M2 |
20M2 – 100M2 |
30M2 – 150M2 |
|
|

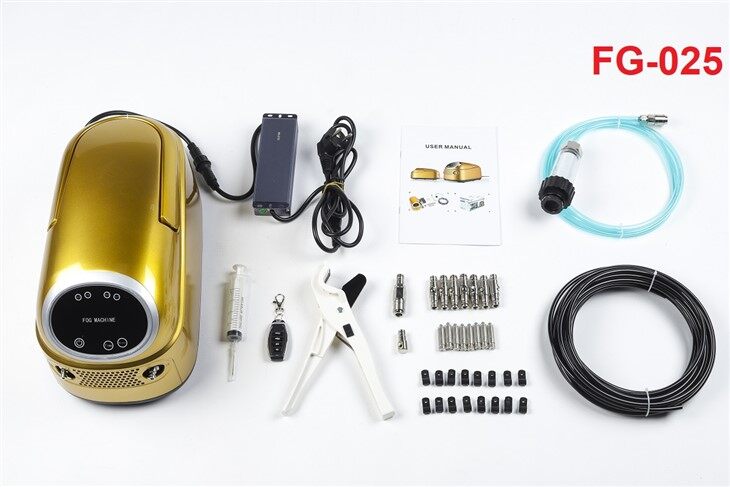

Code |
FG-025 |
FG-050 |
FG-050S |
|
|
Pump |
Flow |
0.25L/min |
0.5L/min |
0.25~0.5L/min |
|
Pump |
3 pistons |
3 pistons |
3 pistons |
|
|
Pressure |
50Bar/786Psi |
60Bar/857Psi |
70Bar/1000psi |
|
|
Motor |
Motor |
12V DC with brush |
12V DC with brush |
12V DC without brush |
|
Motor Power |
90W |
120W |
120W |
|
|
Motor Rpm |
600 |
1200 |
600~1200 (automatic) |
|
|
Performance |
Noise with pressure |
48db |
50db |
48db |
|
Maintains time |
2000h |
1000h |
1000~2000h |
|
|
Remote control |
Yes |
Yes |
Yes |
|
|
Nozzle carry qty (0.15mm) |
2~8 pcs |
5~15 pcs |
2~15 pcs |
|
|
Cooling size |
3M2 – 20M2 |
5M2 – 40M2 |
3M2 – 40M2 |
|
Benefits Of Becoming Our Distributors
Flexible product customization
We can provide dealers with a certain degree of product customization (such as spray volume, number of nozzles, working mode, etc.) to meet the needs of customers in their area.
Favorable wholesale prices
We can provide dealers with competitive wholesale prices, enabling them to purchase at reasonable prices and gain profit margins in the market.
Fast supply support
Once there is a product replacement, we ensure that our dealers can quickly obtain new product supplies and can provide timely transportation and delivery services to avoid product shortages or delivery delays.
Quality assurance and certification
Each product complies with ISO9001 industry standards and CE quality certification, and we have more than 50 patent certificates, which can provide relevant certification documents to dealers to help them gain market trust.
Wide Application of FG High Pressure Mist Machine
Outdoor cooling
Landscaping , place beauty making
Increase humidity for big area
Sterilizing, dedusting & remove haze
Mosquit & flies removing
Irrigation for greenhouse
Full Certificate Approved
We have more than 50 different patent certificates inside and outside of China.
Why Choose FG High Pressure Mist Machine?
There are many high-pressure misting machines on the market, but our FG high-pressure misting machine has greater advantages in corrosion resistance and durability.
| Pump Brand | Material | Pistons | Seal | Nuts & bolts | One-way valve | Corrosion Ressistance |
| FG Machine | Aircraft Aluminum with oxidation | SS304 with ceramic covered | Viton or natural rubber | SS304 | Plastic | 5 stars |
| Other Suppliers | Brass material | SS201 or SS304 | NBR | Steel or SS201 | Brass | 1 star |
Advanced Operation System
FG-025,FG-050,FG-050S: buyers usually from private family, so we use remote key and simple timer, even Child can operate it;
FG-100,FG-150,FG-200,FG-300:usually for commercial use, suchas restaurant. We use Mobile App so every worker can set the machineand machine work with automatically. APP have 10 different languages inside.
Our factory & quipment
FAQ
Q: Do high-pressure misting systems work?
A: High-pressure misting systems can lower the temperature of your patio or deck by up to 30°F/17°C. Perfect for those scorching summer days when you still want to enjoy the outdoors.
Q: What PSI is needed for a misting system?
A: This requires water pressure of at least 700 psi. High-pressure pumps ensure this kind of water pressure and cooling.
Q: What is high-pressure water mist system?
A: This technology generates very fine water droplets which produces a very large heat collecting surface area and rapidly reduce the temperature of the combustion zone and air in the space. As the water droplets convert into vapour, it dilutes the oxygen concentration leading to smothering of fire.
Q: What is the difference between mist and fog machine?
A: Fogging pumps produce ultra-small droplets, approximately 1–10 microns. Misting pumps produce slightly larger droplet sizes, approximately 10–100 microns. Because fog has smaller droplets, it basically floats into the air and randomly settles on surfaces without rhyme or reason.
Q: Do misters waste a lot of water?
A: Patio misters use 1 to 2 gallons of water per hour. Misters can reduce temperatures by 30 degrees Fahrenheit or 10 to 15 degrees in high-humidity areas. High pressure systems are the most effective for residential use.
Q: Which is better fogging or misting?
A: One of the key differences between misting and fogging is that misting treats surfaces as opposed to an area, which is made possible by the controllability of the mist being dispensed from the machine. Fogging doesn't have this level of accuracy, which makes it extremely easy to miss a spot.
Q: How long does a misting system last?
A: A full tank can last either a couple of months or a few depending on the size of your customized system. So as long as you're willing to get it refilled, your misting system will continue to garner results.
Q: What is the difference between a water mist system and a water spray system?
A: Water mist systems discharge water droplets that are less than 1000 microns (μm) in diameter. Fire sprinkler systems have no limitation on the droplet sizes discharged. Most sprinkler systems produce significantly larger water droplets, with droplet sizes around 5000 microns in diameter.
Q: What is a mist machine called?
A: A fog machine, fog generator, or smoke machine is a device that emits a dense vapor that appears similar to fog or smoke. This artificial fog is most commonly used in professional entertainment applications, but smaller, more affordable fog machines are becoming common for personal use.
Q: Do misters need a pump?
A: Without a high pressure misting pump, the water droplets would be too large to evaporate as they pass through the air which leaves the area, and its inhabitants, feeling both wet and sticky. That's why selecting a misting pump to fuel your system is a critical decision.
