We, Taizhou fog machine CO., Ltd. (FG machine) is the professional fog machine producer and leader in China. We product machine, nozzle, pipe, fitting and so on. Our 80% quantity is sold to Europe and OEM is acceptable. A lot of Europe and Middle East brand companies are using our system for...
Send Inquiry
Description
Technical Parameters

We, Taizhou fog machine CO., Ltd. (FG machine) is the professional fog machine producer and leader in China. We product machine, nozzle, pipe, fitting and so on. Our 80% quantity is sold to Europe and OEM is acceptable.  A lot of Europe and Middle East brand companies are using our system for their sales network.



It can be used for family garden, coffee shop, barbecue, super market and so on, can be used at anywhere if need weather cooling, disinfection, attract customers and decoration, it can reduce 6~10 degree weather temperature. It also can avoid the mosquitoes in the summer, very very useful and healthy system.



The popular models have 8pcs, 14pcs, 20pcs, 30pcs, and 50pcs nozzle full set system. Each nozzle can cover from 2.0 to 2.5 square meters.


Usually FG-025, FG-050, FG-050S are for family buyer, we designed use remote key to control and system and even change the pressure, even old people and child can operate it;


While FG-100,FG-150, FG-200 are for business, such as restaurant, shop, hotel, big garden and so on, we designed to use Mobile to control the system, so every worker can use the system.



Code PumpMotorPerformance
Flow  Pump Pressure MotorMotor Power Motor Rpm Noise with pressureMaintains timeRemote controlNozzle carry qty (0.15mm)Cooling size
FG-0250.25L/min 3 pistons

70Bar

/1000psi

 12V DC with brush90W 60048db2000hYes2~5 pcs3M2 – 20M2
FG-050 0.5L/min 3 pistons

70Bar

/1000psi

 12V DC with brush150W 110050db1000hYes4~11 pcs5M2 – 35M2
FG-050S

0.25~0.

7L/min

3 pistons

70Bar

/1000psi

 12V DC
without brush
150W 500~1500 (automatic)48db

1000

~2000h

Yes2~15 pcs3M2 – 45M2
FG-100 1.0L/min 3 pistons

70Bar

/1000psi

110V~240V AC180W 1400/50Hz  1680/60Hz 56db800-1000hYes8~25pcs10M2 – 65M2
FG-150 1.5L/min 3 pistons

70Bar

/1000psi

110V~240V AC180W 1400/50Hz  1680/60Hz 56db800-1000hYes16~40pcs20M2-100M2
FG-200 2.0L/min 3 pistons

70Bar

/1000psi

110V~240V AC250W 1400/50Hz  1680/60Hz 58db800-1000hYes24~55pcs30M2-150M2



PY1A0059

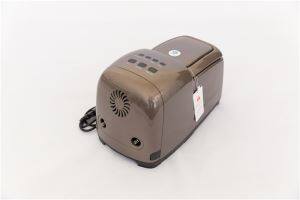

FG-025

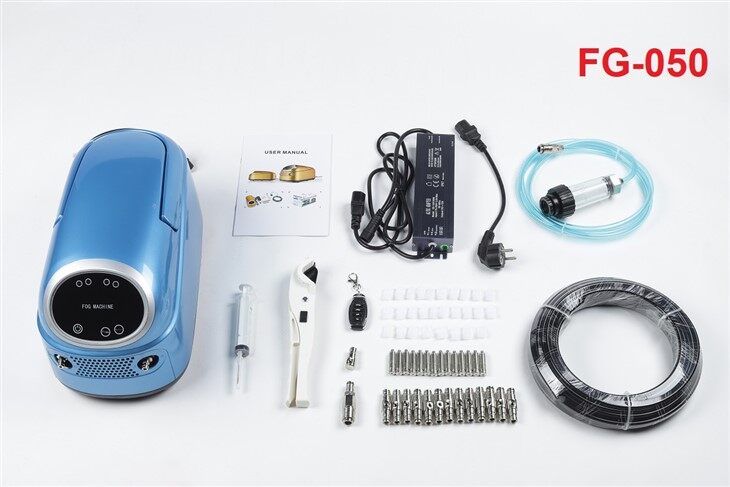

FG-050PY1A0054PY1A0009
